Product Specifications

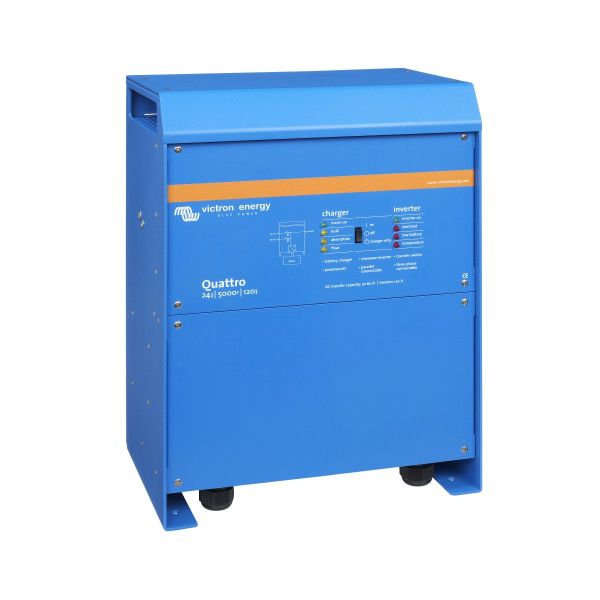

| QUATTRO | 24/5000/120-100/100 |
| PowerControl / PowerAssist | Yes |
| Integrated Transfer switch | Yes |
| AC inputs (2x) | Input voltage range: 187-265 VAC Input frequency: 45 – 65 Hz Power factor: 1 |
| Maximum feed through current (A) | 2×100 |
| INVERTER | |
| Input voltage range (V DC) | 9,5 – 17V 19 – 33V 38 – 66V |
| Output | Output voltage: 230 VAC ± 2% Frequency: 50 Hz ± 0,1% |
| Cont. output power at 25°C (VA) | 5000 |
| Cont. output power at 25°C (W) | 4000 |
| Cont. output power at 40°C (W) | 3700 |
| Cont. output power at 65°C (W) | 3000 |
| Peak power (W) | 10000 |
| Maximum efficiency (%) | 94 / 94 / 95 |
| Zero load power (W) | 30 / 30 / 35 |
| Zero load power in AES mode (W) | 20 / 25 / 30 |
| Zero load power in Search mode (W) | 10 / 10 / 15 |
| CHARGER | |
| Charge voltage ‘absorption’ (V DC) | 14,4 / 28,8 / 57,6 |
| Charge voltage ‘float’ (V DC) | 13,8 / 27,6 / 55,2 |
| Storage mode (V DC) | 13,2 / 26,4 / 52,8 |
| Charge current house battery (A) | 220 / 120 / 70 |
| Charge current starter battery (A) | 4 (12V and 24V models only) |
| Battery temperature sensor | Yes |
| GENERAL | |
| Auxiliary output (A) | 50 |
| Programmable relay | 3x |
| Protection | a-g |
| VE.Bus communication port | For parallel and three phase operation, remote monitoring and system integration |
| General purpose com. port | 2x |
| Remote on-off | Yes |
| Common Characteristics | Operating temp.: -40 to +65˚C Humidity (non-condensing): max. 95% |
| ENCLOSURE | |
| Common Characteristics | Material & Colour: aluminium (blue RAL 5012) Protection category: IP 21 |
| Battery-connection | Four M8 bolts (2 plus and 2 minus connections) |
| 230 V AC-connection | Bolts M6 |
| Weight (kg) | 34 / 30 / 30 |
| Dimensions (hxwxd in mm) | 470 x 350 x 280 444 x 328 x 240 444 x 328 x 240 |
| STANDARDS | |
| Safety | EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1 |
| Emission, Immunity | EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3 |
| Road vehicles | 12V and 24V models: ECE R10-4 |
| Anti-islanding | See our website |
