The MultiPlus-II GX inverter/charger is equipped with GX technology, allowing for enhanced power output and battery charge-rates through parallel operation. It can be easily configured for three-phase supply, providing versatile power options. With advanced features like uninterrupted power supply, load limit settings, and the ability to supplement limited grid-power with battery power, this unit offers comprehensive control over your energy system. You can conveniently manage and monitor the MultiPlus-II GX using your smartphone or smart device, enabling remote monitoring and control for added convenience.

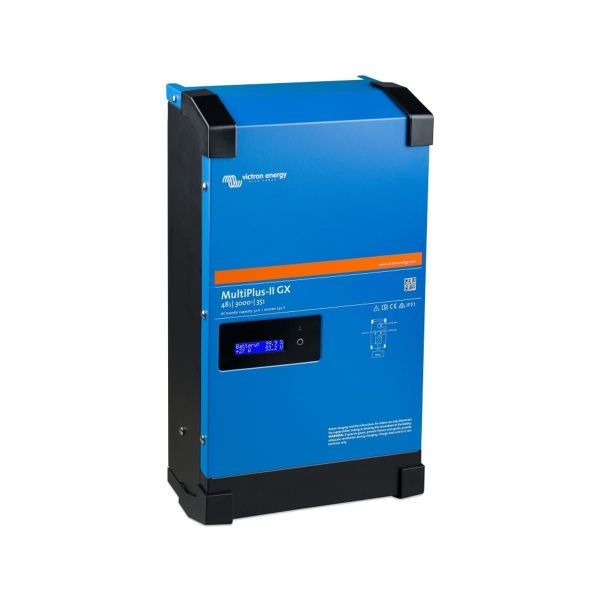

Victron MultiPlus-II 48/3000/35-32 230V GX
The Victron MultiPlus-II 48/3000/35-32 230V GX Inverter/Charger is equipped with advanced networking capabilities that enable seamless communication with solar chargers, batteries, and other devices. This integrated system allows for efficient control and management of grid-connected, off-grid, or remote power installations. With its versatile functionality, the Victron MultiPlus-II empowers users to optimize their energy usage and ensure reliable power supply in various settings.
Product Specifications
| MODEL | MULTIPLUS-II GX 48/3000/35-32 |
| PowerControl & PowerAssist | Yes |
| Transfer switch | 32 A |
| Maximum AC input current | 32 A |
| Auxiliary output | Yes (32 A) |
| INVERTER | |
| DC Input voltage range | 38 – 66 V |
| Output | Output voltage: 230 VAC ± 2 % Frequency: 50 Hz ± 0,1 % |
| Cont. output power at 25 °C | 3000 VA |
| Cont. output power at 25 °C | 2400 W |
| Cont. output power at 40 °C | 2200 W |
| Cont. output power at 65 °C | 1700 W |
| Maximum apparent feed-in power | 3000 VA |
| Peak power | 5500 W |
| Maximum efficiency | 95 % |
| Zero load power | 11 W |
| Zero load power in AES mode | 7 W |
| Zero load power in Search mode | 2 W |
| CHARGER | |
| AC Input | Input voltage range: 187-265 VAC Input frequency: 45 – 65 Hz |
| Charge voltage ‘absorption’ | 57,6 V |
| Charge voltage ‘float’ | 55,2 V |
| Storage mode | 52,8 V |
| Maximum battery charge current | 35 A |
| Battery temperature sensor | Yes |
| GENERAL | |
| Interfaces | BMS-Can, USB, Ethernet, VE.Direct, Wi-Fi |
| External AC current sensor (optional) | 50 A |
| Programmable relay | Yes |
| Protection | a – g |
| VE.Bus communication port | For parallel and three phase operation, remote monitoring and system integration |
| General purpose com. port | Yes, 2x |
| Remote on-off | Yes |
| Operating temperature range | -40 to +65 °C (fan assisted cooling) |
| Humidity (non-condensing) | max 95 % |
| ENCLOSURE | |
| Material & Colour | Steel, blue RAL 5012 |
| Protection category | IP22 |
| Battery-connection | M8 bolts |
| 230 V AC-connection | Screw terminals 13 mm² (6 AWG) |
| Weight | 19 kg |
| Dimensions (hxwxd) mm | 506 x 275 x 147 |
| STANDARDS | |
| Safety | EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN-IEC 62109-2 |
| Emission, Immunity | EN 55014-1, EN 55014-2 EN-IEC 61000-3-2, EN-IEC 61000-3-3 IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3 |
| Uninterruptible power supply | IEC 62040-1 |
| Anti-islanding | Please consult the certificates on our website |
