Product Specifications

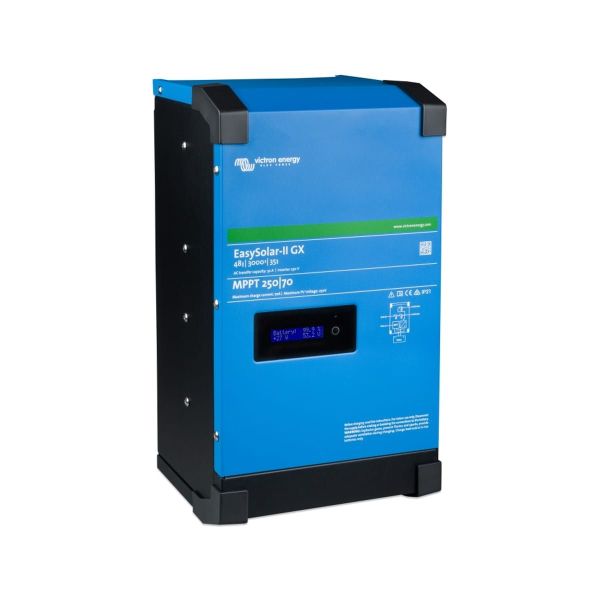

| EASYSOLAR-II | 48/3000/35-32 MPPT 250/70 GX |
| INVERTER/CHARGER | |
| PowerControl & PowerAssist | Yes |
| Transfer switch | 32 A |
| Maximum AC input current | 32 A |
| Auxiliary output | 32 A |
| INVERTER | |
| Input voltage range | 38 – 66 V |
| Output | Output voltage: 230 VAC ± 2 % Frequency: 50 Hz ± 0,1 % |
| Cont. output power at 25 °C | 3000 VA / 2400 W |
| Cont. output power at 40 °C / 55 °C | 2200 W / 1700 W |
| Maximum apparent feed-in power | 2470W / 3000 VA |
| Peak power | 5500 W |
| Maximum efficiency | 95 % |
| Zero load power | 11 W |
| Zero load power in AES mode | 7 W |
| Zero load power in Search mode | 2 W |
| CHARGER | |
| AC Input | Input voltage range: 187-265 VAC Input frequency: 45 – 65 Hz |
| Charge voltage ‘absorption’ | 57,6 V |
| Charge voltage ‘float’ | 55,2 V |
| Storage mode | 52,8 V |
| Maximum battery charge current | 35 A |
| Battery temperature sensor | Yes |
| Programmable relay | Yes |
| Protection | a – g |
| VE.Bus communication port | For parallel and three phase operation, remote monitoring and system integration |
| General purpose com. port | Yes, 2x |
| SMARTSOLAR CHARGE CONTROLLER | |
| Model | MPPT 250/70-Tr |
| Maximum output current | 70 A |
| Maximum PV power | 4000 W |
| Maximum PV open circuit voltage | 250 V |
| Maximum efficiency | 99% |
| Self-consumption | 20 mA |
| Charge voltage ‘absorption’, default | 57,6 V |
| Charge voltage ‘float’, default | 55,2 V |
| Protection | a – e |
| GENERAL | |
| Interfaces | BMS-Can, USB, Ethernet, VE.Direct, Wi-Fi |
| Remote on-off | Yes |
| Operating temp. range | -20 to +45 °C (fan assisted cooling) Max. altitude 2000 m |
| Humidity (non-condensing): | max 95 % |
| ENCLOSURE | |
| Material & Colour | aluminium (blue RAL 5012) |
| Protection category | IP21 |
| Battery-connection | M8 bolts |
| PV connection | M6 bolts |
| 230 VAC-connection | Screw terminals 16 mm2 (6 AWG) |
| Weight | 26 kg |
| Dimensions (h x w x d) mm | 499 x 268 x 237 |
| STANDARDS | |
| Safety | EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN-IEC 62109-2 |
| Emission / Immunity | EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3 |
| Anti-islanding | See our website |
