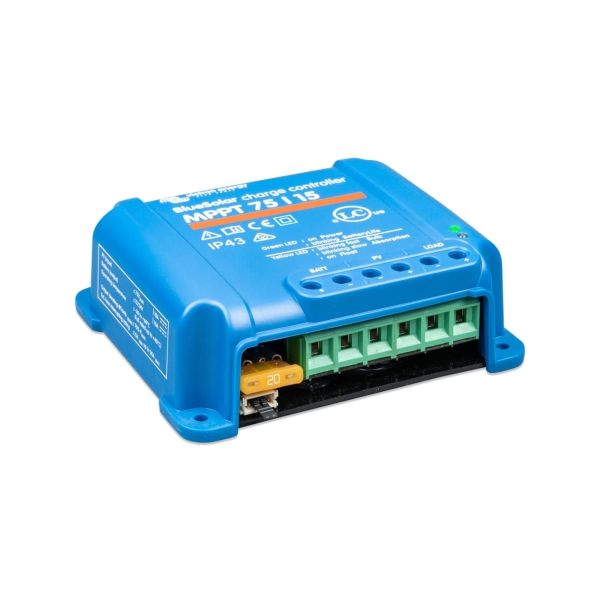

Victron BlueSolar MPPT 75/15 Retail

Victron BlueSolar MPPT 75/15 Retail

Solar Charge Controller:
A solar charge controller is an essential component that harnesses energy from solar panels and stores it in batteries. With cutting-edge technology, the BlueSolar charge controller optimizes energy harvesting, intelligently driving the charging process to achieve maximum charge in the shortest possible time. It also prioritizes battery health, extending its overall lifespan.

MPPT: Ultra Fast Maximum Power Point Tracking
Utilizing MPPT technology, the charge controller continuously monitors the voltage and current output of your solar panels. This advanced tracking system ensures that every bit of available power is efficiently extracted from the panels and stored for later use. This becomes particularly advantageous in partially cloudy conditions when light intensity fluctuates.

Remote Monitoring and Control
Take full control of your BlueSolar MPPT charger through remote monitoring and control capabilities. By connecting a Bluetooth dongle and pairing it with your smartphone or other devices using VictronConnect, you can conveniently manage and monitor the extensive features of the charge controller. If your installation is internet-connected, you can access the Victron Remote Management Portal (VRM) to unlock the complete potential of your MPPT charger from anywhere, at any time. Both VictronConnect and VRM services are free to use. For remote installations without internet access or phone signal, you may have the option to monitor your MPPT through Bluetooth pairing with a LoRaWAN device, which provides long-range wide area network connectivity (optional feature).

Product Specifications

BLUESOLAR CHARGE CONTROLLERMPPT 75/15
Battery voltage (auto select)12/24V
Rated charge current15A
Nominal PV power, 12V 1a,b)220W
Nominal PV power, 24V 1a,b)440W
Nominal PV power, 48V 1a,b)n. a.
Max. PV short circuit current 2)15A
Automatic load disconnectYes
Max. PV open circuit voltage75V
Peak efficiency98%
Self-consumption – load on
Self-consumption – load off
12V: 25 mA 24V: 15 mA
Charge voltage ‘absorption’14,4V / 28,8V (adjustable)
Charge voltage ‘float’13,8V / 27,6V (adjustable)
Charge algorithmmulti-stage adaptive
Temperature compensation-16 mV / °C resp. -32 mV / °C
Max. continuous load current15A
Low voltage load disconnect11,1V / 22,2V / 44,4V or 11,8V / 23,6V / 47,2V or Battery Life algorithm
Low voltage load reconnect13,1V / 26,2V / 52,4V or 14V / 28V / 56V or Battery Life algorithm
ProtectionOutput short circuit / Over temperature
Operating temperature-30 to +60°C (full rated output up to 40°C)
Humidity95%, non-condensing
Data communication portVE.Direct (see the data communication white paper on our website)
ENCLOSURE
ColourBlue (RAL 5012)
Power terminals6 mm² / AWG10
Protection categoryIP43 (electronic components), IP22 (connection area)
Weight0,5 kg
Dimensions (h x w x d)100 x 113 x 40 mm
STANDARDS
SafetyEN/IEC 62109-1, UL 1741, CSA C22.2

Product Documents

   Download Data Sheet
