The remarkable Sunsynk Battery LFP Wall Mount 5.32kWh 51.2V offers you the ultimate storage solution. Equipped with rechargeable Lithium Ferro Phosphate batteries and an integrated self-management system that detects any anomalies, this unit ensures reliable performance on every occasion.

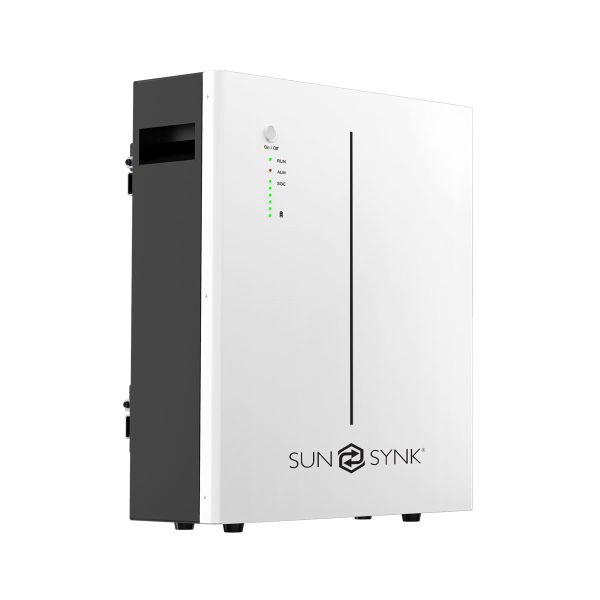

Sunsynk Battery LFP Wall Mount 5.32kWh 51.2V
The remarkable Sunsynk Battery LFP Wall Mount 5.32kWh 51.2V offers you, the user, the perfect storage solution. It features rechargeable Lithium Ferro Phosphate batteries and a built-in self-management system that efficiently detects any irregularities, ensuring consistent performance every time.
Product Specifications
| MODEL | SUN-BATT-5.32 |
| PERFORMANCE | |
| Norminal Voltage | 51.2 Vdc |
| Norminal Capacity | 104Ah |
| Battery Energy | 5320 Wh |
| Charge Voltage | 55.68~56.16 Vdc |
| Discharge Voltage | 45.6~56.16 Vdc |
| Norminal Charge / Discharge Current | 50A |
| Norminal Charge / Discharge Power | 2500W |
| Max Charge / Discharge Current | 100A |
| Max Charge / Discharge Power | 5000W |
| Short Circuit Current | 350A |
| COMMUNICATION | |
| Display | SOC Status indicator, LED indicator |
| Communication | RS232, RS485, CAN |
| GENERAL SPECIFICATION | |
| Dimension (WxDxH mm) | 450x150x533mm |
| Weight (kg) | 45kg |
| Installation | Floor stand or wall mounted |
| Working Temperature | -20°C ~ 60°C |
| Storage Temperature | <25°C, 12 months; <35°C, 6 months; <45°C, 3 months |
| Operating / Storage / Humidity | <95%RH |
| Max Operating Altitude | <2000m |
| IP Rating | IP20 |
| Cell Technology | LiFePO, Lithium Ion Phosphate |
| Cycle Life | 6000 Cycles @ 80% DOD/25°C/0.5C, 60% EOL |
| Scalability | Max 8 batteries in parallel |
| STANDARD COMPLIANCE | |
| Certification | PACK:UN38.3,IEC62619,IEC61000 CELL:UN38.3,IEC62619,UL 1642, JET (more available upon request) |
| ORDERING AND DELIVERABLE PART | |
| Product Ordering Part | SUN-BATT-5.32 battery SUN-BATT-5.32 parallel cable SUN-BATT-5.32 to PCS cable |
