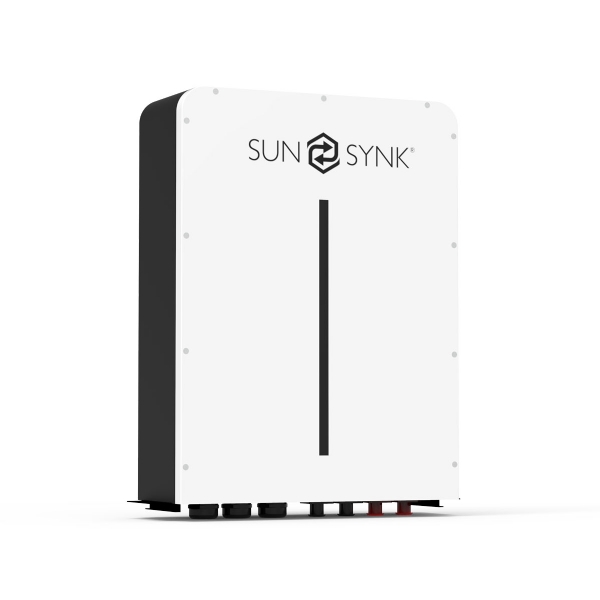

The series is specifically designed for high-power applications, where installation space is limited, load-bearing is restricted, and a long life cycle is desired. With its built-in management system, the battery can effectively monitor and manage cell information such as voltage, current, and temperature. Additionally, the Battery Management System (BMS) ensures balanced cell charging and discharging, thereby extending the cycle life of the battery.
For applications requiring larger capacity and longer power support duration, multiple batteries can be connected in parallel to expand capacity and increase power output.
| Battery Chemistry | LiFePO4 | |
| Capacity (Ah) | 100 | |
| Scalability | Max 32 pcs in parallel (163.8kWh) | |
| Nominal Voltage | 51.2 | |
| Operating Voltage | 43.2 – 57.6 | |
| Energy (kWh) | 5.12 | |
| Usable Energy (kWh) [1] | 4.61 | |
| Charge / Discharge Current (A) | Recommend [2] Max [2] Peak [2 mins, 25°C] | 50 100 150 |
| Recommend Depth of Discharge | 90% | |
| Dimension (w/h/d) mm | 440 x 640 x 140 | |
| Weight Approximate (kg) | 50 | |
| Master LED Indicator | 5 LED (20%-100%) 3 LED (working, alarming, protecting) | |
| IP Rating of Enclosure | IP65 | |
| Working Temperature | Charge: 0°C – 55°C Discharge: -20°C – 55°C | |
| Storage Temperature | 0°C – 35°C | |
| Humidity | 5% – 95% | |
| Altitude | ≤2000m | |
| Cycle Life | ≥6000 (25±2°C, 0.5C, 70%EOL) | |
| Installation | Wall Mounted or 19-inch standard cabinet | |
| Communication Port | CAN2.0, RS485 | |
| Warranty Period [3] | 5 years | |
| Life Cycle Power During Warranty Period [3] | 16MWh@70%EOL | |
| Certification | IEC62619, CE, UN38.3 | |
[1] DC Usable Energy, test conditions: 90% DOD, 0.5C charge & discharge at 25°C. System usable energy may vary due to system configuration parameters.
[2] The current is affected by temperature and SOC.
[3] The warranty is due whichever reached first of warranty period or life cycle power.
