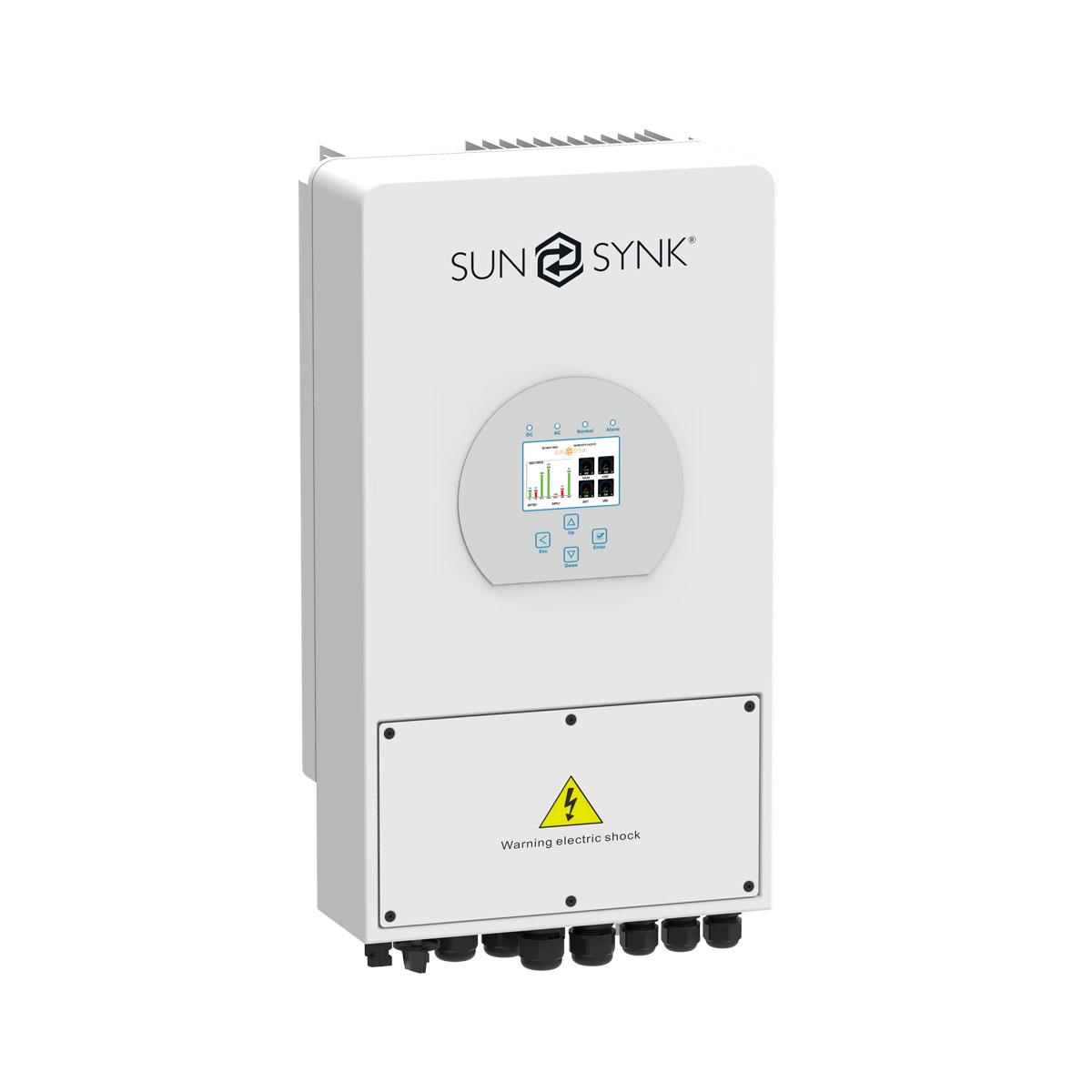

Sunsynk 3kW 1P Hybrid PV inverter 48v C/W Wifi Dongle IP65

Sunsynk 3kW 1P Hybrid PV inverter 48v C/W Wifi Dongle IP65

The Sunsynk 3kW 1P Hybrid PV Inverter is the perfect solution for powering a wide range of devices, from TVs and decoders to computer equipment and energy-hungry appliances like fridges, microwaves, washing machines, dishwashers, kettles, and toasters.

Versatile Installation Options

1. UPS Backup Power: Begin with a backup power setup using batteries and the inverter alone. Later, you can easily incorporate solar panels for added efficiency.

2. Grid-Tied Setup: Start with a grid-tied system, combining solar panels and the inverter. You have the flexibility to integrate batteries at a later stage.

3. Complete Hybrid System: Opt for a comprehensive hybrid system that includes batteries and solar panels. This scalable solution allows for future expansions as needed.

4. Off-Grid Independence: Choose a fully independent off-grid system, allowing you to operate autonomously without relying on the grid or external power sources.

Experience the convenience and flexibility of the Sunsynk 3kW 1P Hybrid PV Inverter, providing reliable power for a wide range of devices. Tailor your installation to suit your needs, whether it’s starting with backup power, grid-tied setup, a complete hybrid system, or going completely off the grid. Embrace the freedom to power your devices with ease and efficiency.

Product Specifications

MODELSUNSYNK-3.6K-SG01LP1 / SUNSYNK-3.6K-SG01LP3
ProductType Hybrid Inverter
EnclosureIP65
Ambient Temperature-45ºC ~ 60ºC (>45ºC derating)
Protection LevelClass I
CHARGE MODE
Battery Voltage48Vd.c (40Vd.c ~ 60Vd.c)
Battery Current90Ad.c (max.)
AC Input VoltageL/N/PE 220/230Va.c
AC Input Frequency50/60Hz
AC Input Rated Current16.4Aa.c
Max. AC Input Current18Aa.c (max.)
Max. AC Input Power3960W
Max. Apparent Output Power3960VA
PV Input Voltage370Vd.c (125Vd.c ~ 500Vd.c)
MPPT Input Voltage150Vd.c ~ 425Vd.c
PV Input Current13Ad.c + 13Ad.c
Max. PV Input Power4680W
Max. PV Isc17Ad.c + 17Ad.c
UTILITY-INTERACTIVE
AC Output VoltageL/N/PE 220/230Va.c
AC Output Frequency50/60Hz
AC Output Rated Current16.4Aa.c
Max. AC Output Current18Aa.c (max.)
Max. AC Output Power3960W
AC Output Rated Power3960VA
AC Output Power Factor0.95 leading to 0.95 lagging
Max. AC Isc60Aa.c
Battery Discharge Voltage40Vd.c ~ 60Vd.c
Battery Discharge Current90Ad.c (max.)
Battery Discharge Power3600W
STAND ALONE
AC Output Voltage L/N/PE220/230Va.c
AC Output Frequency50/60Hz
AC Output Rated Current16.4Aa.c
AC Output Rated Power3960W
Max. Continuous AC Passthrough Current35Aa.c
Peak Output Power7200W (10 seconds)
Battery Discharge Voltage40Vd.c ~ 60Vd.c
Max. Discharge Current90A (max.)
ComplianceVDE-AR-N 4105:1028-11; DINVDE V 0124-100:2020-06; IEC/EN62109-1/2:2010; IEC/EN62109-1/2:2011



Product Documents

   Download Data Sheet
