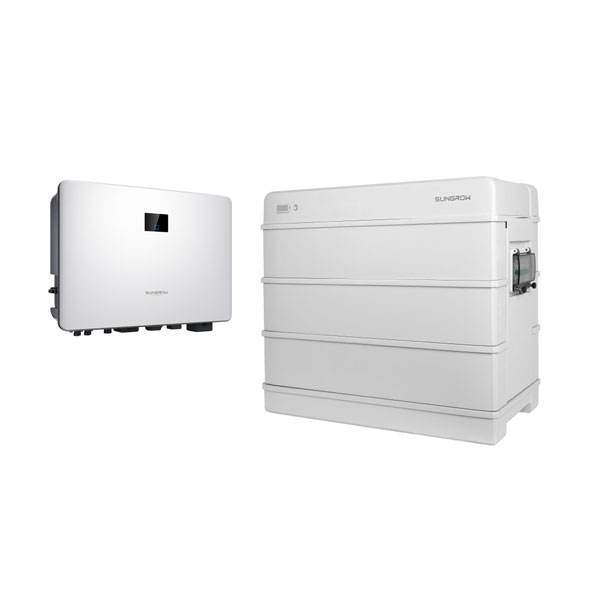

Sungrow 6kw Inverter & 9.6kWh (3×3.2kWh) Batteries + Accessories

Sungrow 6kw Inverter & 9.6kWh (3×3.2kWh) Batteries + Accessories

Superior Performance
Achieve remarkable results with up to 30A continuous charging and discharging current, ensuring efficient energy transfer. Experience the full potential of your system with up to 100% usable energy utilization, maximizing your overall efficiency.

Enhanced Safety
The lithium iron phosphate battery composition guarantees optimal safety and stability. With a meticulously designed multi-stage protection system and extensive safety certifications, your peace of mind is our priority.

Unmatched Flexibility
Adapt and expand effortlessly over time. Our solution allows for easy scalability, supporting 3-8 modules per unit and up to 4 units in parallel, enabling a capacity range of 9-100 kWh. Future-proof your energy storage needs.

Effortless Installation
Enjoy a hassle-free installation process with our compact and lightweight design. The system is designed for single-person installation, saving time and effort. Embrace simplicity with our plug-and-play configuration, eliminating the need for additional cables between battery modules.

Experience exceptional performance, unwavering safety, unmatched flexibility, and effortless installation with our advanced energy storage solution. Unlock the full potential of your energy system and power your future with confidence.

Product Specifications

MODELSBR096
SYSTEM DATA
Battery TypeLiFePO4 Prismatic Cell
Battery Module3.2 kWh, 33 kg
Energy (useable) 19.6 kWh
Nominal Voltage192 V
Rated DC Power5.76 kW
Operating Power150 – 219 V
Max. charging / discharging current:
continuous
30 A
Depth of dischargeMax. 100 % DOD (settable)
Short circuit current3500 A
DisplaySOC indicator, Status indicator
Communication interfaceCAN
PROTECTION
Over / under voltage protectionYes
Over current protectionYes
Over/under temperature protectionYes
DC breakerYes
GENERAL DATA
Dimensions (W*H*D)625*545*330 mm
Weight114 kg
Installation locationIndoor / Outdoor
Mounting methodFloor stand
Operating ambient temperature rangeCharge: 0 to 50 ℃
Discharge: -20 to 50 ℃
Degree of protectionIP55
Allowable relative humidity range0% to 95% no condensing
Max. operating altitudeMax. 4000 m
Cooling methodNatural convection
CertificatesCE, CEC, IEC 62619, IEC 62040, UN38.3, VDE 2510-50
Warranty 210 Years



1: Test conditions: 25 ℃, 100 % depth of discharge (DOD), 0.2C charge & discharge
2: Refer to battery warranty letter for conditional application.



Product Documents

   Download Battery Specification Sheet

   Download Inverter Specification Sheet
