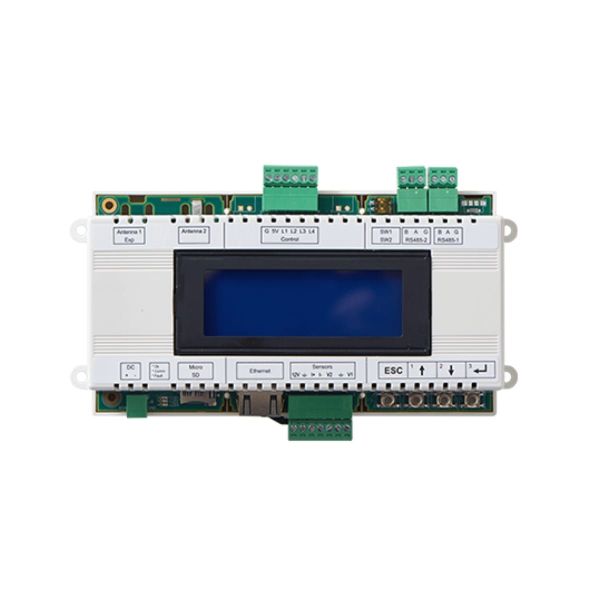

SolarEdge Commercial Gateway

SolarEdge Commercial Gateway

The all-in-one communication gateway serves as a comprehensive solution for your communication needs.

– Wireless connectivity: It offers wireless connection options, including optional WiFi, Zigbee, and GSM modules, ensuring seamless communication between devices.
– Environmental sensor support: The gateway is compatible with environmental sensors, allowing you to monitor and gather data on various environmental conditions.
– Power reduction interface: It includes a power reduction interface that enables you to manage and control power consumption effectively.
– Electricity meter reader: The gateway supports electricity meter reading, providing accurate measurements and data collection for monitoring and analysis.
– Non-SolarEdge inverter data loggers: It is capable of integrating with data loggers from non-SolarEdge inverters, ensuring compatibility and comprehensive system monitoring.
– Easy installation: The gateway is designed for easy installation, offering options for DIN rail and wall mount setups, providing flexibility and convenience in deployment.

Product Specifications

MODELSE1000-CCG-F
POWER
Power Supply – Wall MountIncluded, 100-240VAC, EU/UK/US/AU interchangeable, 2-pin plug
Supply Voltage9-14
Connector Typeterminal block
Power Consumption<2
ANALOG SENSOR INPUT
Number of Inputs3
 RangeAccuracyResolution
Input 10-30mV or 0-2V+/-1%f.s10 bit
Input 20-2V or 0-10V+/-1%f.s10 bit
Input 3-20mA-20mA+/-1%f.s10 bit
COMMUNICATION INTERFACES
Ethernet Interface10/100-BaseT
Wireless ConnectionsWiFi or ZigBee modules (*)
GSM Module Interface2G/3G GSM
Power Reduction Interface4 control pins, 5V, GND
RS485 Interface2ports; Maybe be used for local connection
SUPPORTED RS485 DEVICES
SolarEdge DevicesYes
Export Inverter DataYes
Revenue MetersYes
Export Data to Non-SolarEdge LoggerYes
ENVIRONMENTAL
Operating Temperatures-20 to 60 / -4 to 140
Protection RatingIP20 Indoor
MECHANICAL
Mounting TypeDIN Rail / Wall Mount
Dimensions (LxWxH)165 X 90.5 X 53.5 / 6.5 X 3.56 X 2.11
Weight0.5 / 1.1
STANDARD COMPLIANCE
SafetyUL60950-1, IEC-60950-1
EMCFCC Part 15 class B, IEC61000-6-2, IEC61000-6-3
