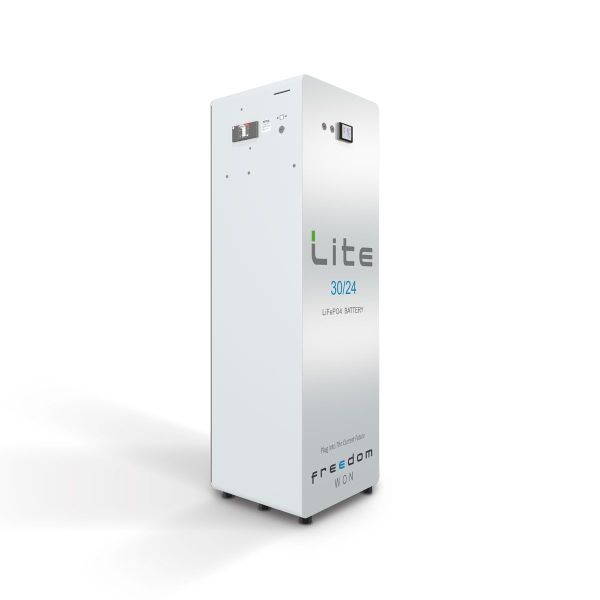

Freedom Lite Home 30/24kWh 52v LiFePO4 Battery

Freedom Lite Home 30/24kWh 52v LiFePO4 Battery

High Performance

Experience high energy density, allowing for more energy with less weight.
Benefit from high charge currents, reducing the charge period and essential for an efficient solar power system.
Enjoy high discharge currents, enabling electrical cooking and other power-intensive activities even with a small battery bank.
Extend the battery life, which can be up to six times longer than lead acid batteries.
Experience high efficiency between charging and discharging, minimizing energy loss due to heat development.
Access higher continuous power for your energy needs.

Rugged

Avoid premature failure due to sulphating, common in lead acid batteries when left partially charged or fully discharged. Lithium Iron Phosphate batteries do not require full charging, have a wide operating temperature range, and exhibit excellent cycling performance, making them ideal for demanding applications.

Efficient

Benefit from superior energy efficiency with a LiFePO4 battery. While lead acid batteries have a typical round trip energy efficiency of around 70%, LiFePO4 batteries achieve over 96% efficiency. Charging a lead acid battery to its final 20% charge can be highly inefficient, with energy losses of approximately 50%. In contrast, LiFePO4 batteries consistently maintain 96% efficiency, allowing for quicker and more energy-efficient charging.

Size & Weight

Enjoy significant space and weight savings with LiFePO4 batteries, which are up to 70% smaller and lighter compared to lead acid batteries.

Battery Management System

Ensure the optimal performance and longevity of your battery with an advanced Battery Management System (BMS). The BMS actively balances individual cells, preventing under or over voltage that can damage the battery. It also enables communication between the battery and the rest of the system, ensuring seamless integration and control.

Product Specifications

FREEDOM LITEHOME
30/24
Total Energy Capacity [kWh]30
Energy, 80% DoD [kWh]24
Energy, 90% DoD [kWh]27
Current Capacity [Ah]600
Max & Cont. Charge Current [A]600
Max & Cont. Charge Power [kW]30
Max/Cont. Discharge Current [A]750/600
Max/Cont. Discharge Power [kW]38/30
Max Recommended Inverter Total
Rated Power (cont.) [kVA]
25
Nominal Voltage [V]52V, to suit 48V Inverters, min 47V, max 56V
Weight [kg]310
Dimensions on or against wall –
Height x Width x Depth [mm]
1540x455x370
EnclosureAluminium – powder coated white front, rated for indoor use
DC Connection – Integrated Cables,
[no. per electrode]
2x 95mm²
Control InterfaceRJ45 Socket x 2 – CAN Bus for Interfacing with Compatible Inverters and System Controllers, and communication for the connection of parallel batteries – note that parallel batteries must all be of the same model.
ProtectionShunt Trip Circuit Breaker sized to suit max current, can be tripped by BMS if critical fault, manual reset. Includes overcurrent, cell under and over voltage, temperature, weak cell detection, minimum SOC control
Human InterfaceState of Charge Display (0 to 100%), Error light, Error Reset Button, Serial RS232 Plug for Programming (note the Lite 80/56 has a CAN port for programming and not a serial port), WiFi remote monitoring (optional accessory)
Warranty10 years or 4 000 cycles for average 80% DoD, and max 90% DoD
Service Life>16 years (>5 500 cycles) expected life at 80% DoD (1), >20 years (>7 500 cycles) at 50% DoD
Essential AccessoriesNote that for connecting the battery to a PC a special adapter is required:

  • Lite 5/4 up to Lite 60/42 – Serial RS232 to USB adapter (must be the brand supplied by Freedom Won)
  • Lite 80/56 – CANdapter (available from Freedom Won) (supplied with battery)

CAN Bus Termination Resistor – one required per battery, available from Freedom Won (not included with battery)
